Manning systems gas monitor gm-10 alarm ammonia NH3

For Sale: Manning systems gas monitor gm-10 alarm ammonia NH3

Subject Manning systems gas monitor gm-10 alarm ammonia NH3

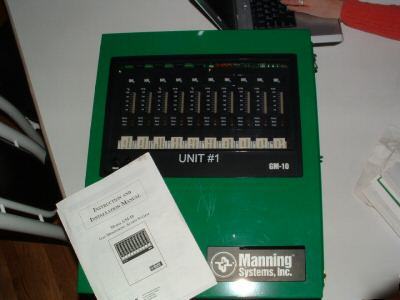

Ad is submitted by poster: Includes Instruction and installation manual.
The GM-10 is a multi-channel stand-alone monitoring/safety system that supports up to ten (10) Manning Systems gas detection sensors and can interface with the plant central safety controls.
Modular construction allows easy addition of one or two Relay Output Boards (providing up to 40 extra relay outputs) and a GM -10-AOB Analog Output Board for individual 4/20 mA output from each channel (total of 10).
The GM-10 will support any combination of Manning Systems fixed sensors for gases, including NH3, CO2, H2, CO, Cl2, CFCs, HCFCs, HFCs, CH4, O2 and more.
Gas selective sensor technologies measure selected PPM setpoints from OSHA's Permissible Exposure Limit (PEL) and the Threshold Limit Value/Short-Term Exposure Limit (TLV-STEL) up to the Lower Explosive Limit (LEL) range and indicate concentration levels with bargraph displays.
Field adjustable setpoints for each channel allow the operator to easily set or adjust warning and alarm trip levels at the main control panel.
Each channel of the GM-10 features a 20-segment LED bargraph that indicates gas concentration, and three types of visual status indicators. The Warning LED, indicating that the operator-selected warning setpoint has been exceeded, triggers the common warning relay and the individual warning relay for that channel on the optional relay board.
The Alarm LED operates in a similar manner for the alarm level, but also triggers the common horn relay and buzzer which can be cleared manually. A fault on any channel triggers the common fault and horn relays and buzzer.
When any channel goes into a specified trip condition, common relays for Warning, Alarm, Fault and auxiliary Horn will be activated.
Unlike sample draw systems, gas detection by diffusion method gives continuous monitoring of all protected areas simultaneously. This system covers the leak detection requirements and indicates gas concentration status for an entire plant at a single glance. The GM-10 can interface to, but operates independently of, plant control systems. It offers the ultimate in reliability and ease of maintenance.
The GM-10 is an integral monitoring component of MPSS. The Mamming Primary Safety System(MPSS) is a total, turnkey solution for the detection of toxic gas leaks showing gas safety status of an entire industrial facility at a single glance. Multiple relays trigger key emergency safety control of equipment shutdown functions and allow Emergency Responders to easily assess an ammonia or other gas leak situation - even in the event of computer viruses, operating system crashes or human error. bears NO responsibility for this ad. Please report ads that do not follow our rules (on front page). Posted By: Amelia Nielsen
