Lambda ljs-12-6-ov-7614 5VDC switching power supply
For Sale: Lambda ljs-12-6-ov-7614 5VDC switching power supply
Subject Lambda ljs-12-6-ov-7614 5VDC switching power supply
Ad is submitted by poster:
Used Lambda LJS-12-6-OV-7614 Modular Regulated Switching Power Supply. Input 105-132VAC 47-440Hz or 130-160VDC. This unit is factory modified to produce an output of 5.0 VDC with 5% adjustment at 25 Amps at up to 40C. It has internal fixed overvoltage protection.
This is a switching power supply that will only produce a stable output under load. The manufacturer recommends a 10% load. My experience tells me that a load as small as 2% of rated output is usually sufficient.

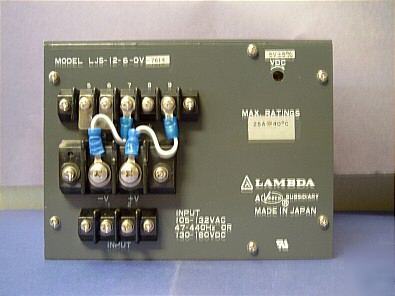

This power supply has been tested for functionality. We do not guarantee its suitability for any particular purpose or application. It is 4-3/4" high by 6-1/4" wide by 8" deep (8-1/2" including the terminal blocks). It weighs just under 6 pounds. The serial number of this power supply is LJ4-AA06-1X0177. The picture is of the power supply in this listing.
More information on this power supply series may be found at: http:// /ftp/catalog/lj_fall85.pdf
