For Sale: Frequency synthesizer - manual or fully program. (hp-ip


Subject Frequency synthesizer - manual or fully program. (hp-ip
Ad is submitted by poster: Fully programmable (HP-IP) Frequency synthesizer (HP3330B)has -50dB Signal-to-noise. Amplitude could be controlled to a resolution of 0.01dB over a 100 dB range. NINE digit of frequency are displayed.

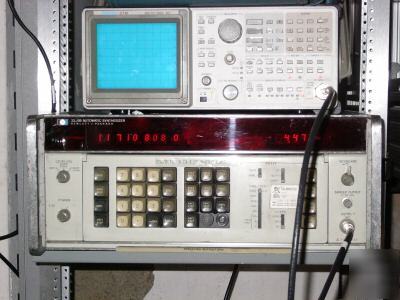

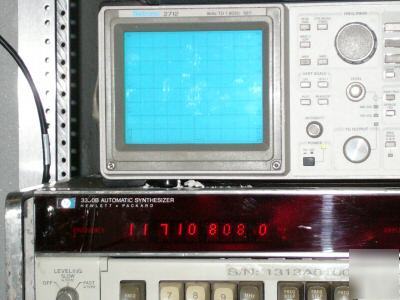

This Unit has been tested. Please see the actual output performance in the picture.
▪ ±1x10-8 /day frequency stability
▪ -50 dB signal to phase noise with a constant resolution of 0.1 Hz to 13 MHz
▪ +13.44 dBm to -86.55 dBm into 50 Ω amplitude range
▪ Harmonic distortion, with full output amplitude: -60 dB (5 Hz to 100 kHz), -50 dB (100 kHz to 1 MHz), and -40 dB (1 MHz to 13 MHz)
▪ 100 mV rms/50 Ω tracking output (20 to 33 MHz )
▪ 1 MHz reference output 220 mV rms/50 Ω (0 dBm/50 Ω)
▪ Step size is continuously adjustable in 0.1 Hz increments
▪ Number of steps: 10, 100, or 1000
▪ Time per step: 1, 3, 10, 30,100, 300, 1000, and 3000 mS

repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our rules (on front page). Posted By: Jenna Parsons
Contact: J-parsons@repair--parts.com (Jenna Parsons) (this is a temporary forwarding address).
