Bradco 7FT dozer blade with quick attach
For Sale: Bradco 7FT dozer blade with quick attach
Subject Bradco 7FT dozer blade with quick attach
Ad is submitted by poster:

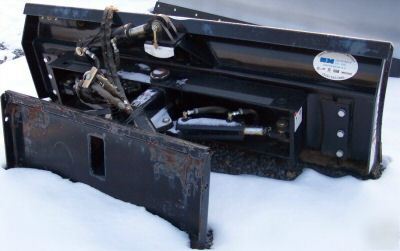

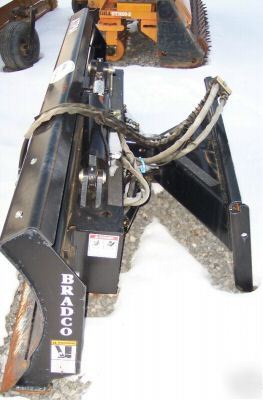

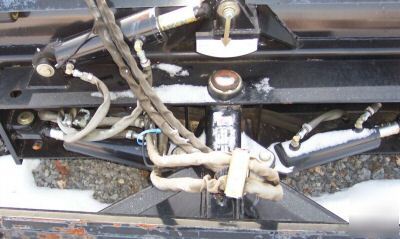

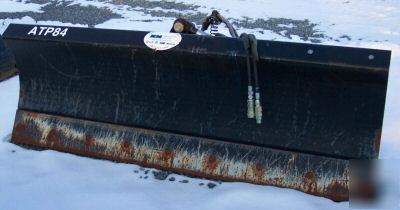

This item for sale is a Used Bradco Angling and Tilting Dozer Blade. The width is 84 inches and a cutting depth of 28 inches. The model is an ATP84, serial number is 124890. The angling and tilting are controlled by hydraulic powered, this power comes from the Front Loader Hydraulics on the tractor. This will also fit a Skid Steer that is setup with Quick Attachment. This Blade is shown mounted on a New Holland TC30. This is in good working order and is ready to go.
• Hydro-electric controlled angle and tilt, using only one loader valve
• Reversible cutter bar ¾” x 8”
• Angle 30° right or left off center
• Tilt 10° off horizontal both directions
• Tilt indicator visible from the operators seat
• Reversible ¾” x 8” bolt-on cutting edge & formed moldboard .31 thick & 28" high
• Large 3” center pivot pin with
• Angle and tilt cylinders are interchangeable and equiped with self aligning bushings
• Large 3” center pivot pin with hardened steel bushings
• Full length high carbon steel, replaceable skid shoe
• Set up to default in either tilt or angle position
• Universal skid-steer loader quick attach mounting, or use on skidsteers up to 110 HP
Specifications 84" Modele84cification cations 84
Width From Center Line to Inside Edge @ 15° 44"
Width From Center Line to Inside Edge @ 30° 43"
Width From Center Line to Outside Edge @ 15° angle 38"
Width From Center Line to Outside Edge @ 30° angle 31"
