R & s CMD80 digital radiocommunications tester w/opts.
For Sale: R & s CMD80 digital radiocommunications tester w/opts.
Subject R & s CMD80 digital radiocommunications tester w/opts.
Ad is submitted by poster:

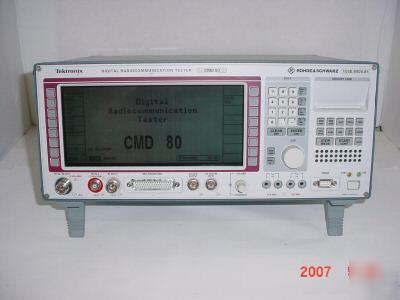

Rohde & Schwarz CMD80 Digital Radiocommunications Tester with options B1, B3, B60, B62, B61, B82, B14 and K1
The CMD80 Communication Test Set provides the ideal one-box solution for testing digital mobile radio equipment - CDMA, GSM, DCS 1800, DCS 1900. The unit is a compact tester for CDMA mobiles which provides full signaling capabilities. The mobile RF parameters are verified under similiar conditions as found in a real network (the tester simulates a base station, makes a call to the mobile, and performs the measurements without any special test modes in the device-under-test.)
* High measurement accuracy and repeatability
* High reliability and quality
* Triple mode (CDMA, TDMA, Analog) dual band (cellular, PCS) in one box
* Remote control via IEEE488/IEC625 bus
* Autotest - complete mobile testing at a keystroke
* Remote control via GPIB or RS232
* Suitable for production, development and service
* Very fast remote control operation
* Excellent price/ performance ratio
* Voice lookback and comprehensive testing of mobiles
* Powerful signaling capabilties
* Simple interactive operation
* No specialized network knowledge required
* Service mode for exact fault location
This unit has the following options:
* Option B1: OCXO Reference Oscillator
* Option B3: Reference frequency inputs/outputs
* Option B14: Rate Set 2 (13k vocoder support)
* Option B60: Carrier Board for B61/B62
* Option B61: IEEE/IEC-Bus Interface
* Option B62: Memory Card Interface
* Option K1: IS-95 CDMA 800 MHz Test
Please Note: This Unit has a Noise Fun
* Our hours of operation are M-F, 10-5PM Pacific Standard Time.
Phone: (***) 257-2445 Fax: (***) 257-6310
