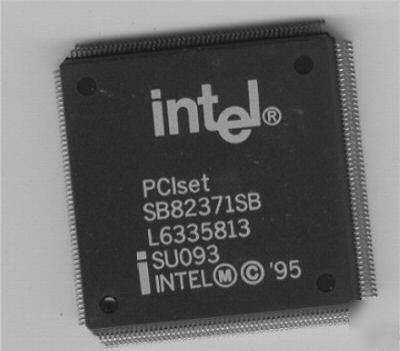

82371 / SB82371SB / SB82371 / intel integrated circuit

For Sale: 82371 / SB82371SB / SB82371 / intel integrated circuit


Subject 82371 / SB82371SB / SB82371 / intel integrated circuit
Ad is submitted by poster: Please note: These parts are refurbs
Bridge Between the PCI Bus and ISA Bus
PCI and ISA Master/Slave Interface
Supports PIO and Bus Master IDE
8 x 32-Bit Buffer for Bus Master IDE PCI Burst Transfers
Separate Master/Slave IDE Mode Support (PIIX3)
Plug-n-Play Port for Motherboard Devices
2 Steerable DMA Channels (PIIX Only)
Fast DMA with 4-Byte Buffer (PIIX Only)
2 Steerable Interrupts Lines on the PIIX and 1 Steerable Interrupt Line on the PIIX3
Steerable PCI Interrupts for PCI Device PlugnPlay
PCI Specification Revision 2.1 Compliant (PIIX3)
Functionality of One 82C54 Timer
System Timer; Refresh Request; Speaker Tone Output
Two 82C59 Interrupt Controller Functions
Independently Programmable for Edge/Level Sensitivity
7 Independently Programmable Channels
Controls Lower X-Bus Data Byte Transceiver
I/O Advanced Programmable Interrupt Controller (IOAPIC) Support (PIIX3)
Universal Serial Bus (USB) Host Controller (PIIX3)
Compatible with Universal Host Controller Interface (UHCI)
Contains Root Hub with 2 USB Ports
System Power Management (Intel SMM Support)
Programmable System Management Interrupt (SMI)—Hardware Events, Software Events, EXTSMI#
Programmable CPU Clock Control (STPCLK#)
NAND Tree for Board-Level ATE Testing
The 82371FB (PIIX) and 82371SB (PIIX3) PCI ISA IDE Xcelerators are multi-function PCI devices implementing a PCI-to-ISA bridge function and an PCI IDE function. In addition, the PIIX3 implements a Universal Serial Bus host/hub function. As a PCI-to-ISA bridge, the PIIX/PIIX3 integrates many common I/O functions found in ISA-based PC systems—a seven-channel DMA controller, two 82C59 interrupt controllers, an 8254 timer/counter, and power management support. In addition to compatible transfers, each DMA channel supports type F transfers. Chip select decoding is provided for BIOS, real time clock, and keyboard controller. Edge/Level interrupts and interrupt steering are supported for PCI plug and play compatibility. The PIIX/PIIX3 supports two IDE connectors for up to four IDE devices providing an interface for IDE hard disks and CD ROMs. The PIIX/PIIX3 provides motherboard plug and play compatibility. PIIX mplements two steerable DMA channels (including type F transfers) and up to two steerable interrupt lines. PIIX3 implements one steerable interrupt line. The interrupt lines can be routed to any of the available ISA interrupts. Both PIIX/PIIX3 implement a programmable chip select.
