20" x 60" victor gap bed engine lathe

For Sale: 20" x 60" victor gap bed engine lathe


Subject 20" x 60" victor gap bed engine lathe

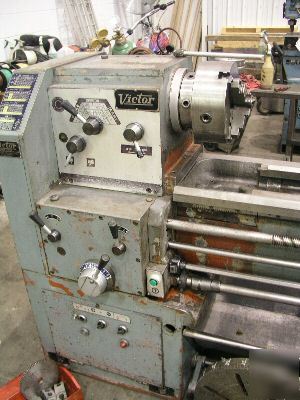

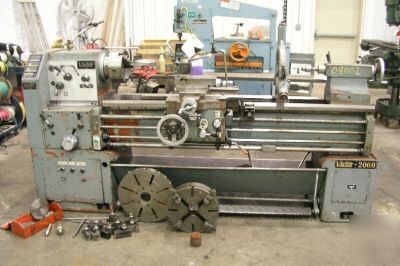

Ad is submitted by poster: 20" X 60" VICTOR GAP BED ENGINE LATHE
Serial # 780258 New 1990's Model # 2060
(16) Spindle Speeds: 25 to 1500 RPM
Carriage Feeds: 3.3 to 23.3 TPR
Cross Slide Feeds: 1.6 to 10.8 TPR
Tailstock Quill Diameter: 2-1/2" with #4 Morse Taper

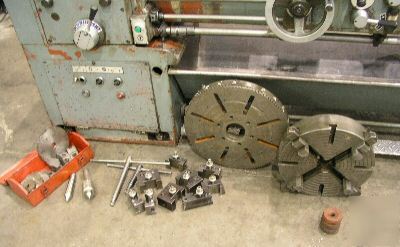

10" 3-Jaw Chuck with 2-Piece Hard Reversible Top Jaws
14" 4 Jaw Chuck with 1-Piece Reversible Hard Jaws
All Chucks and Face Plates Have D1-6 Camlock Mounts
Change Gears for Metric Threading
Hardened and Ground Bed Ways in Good Condition
Carriage and Way Self Lubrication System
Graduated Dials on Each Axis Movement Handle

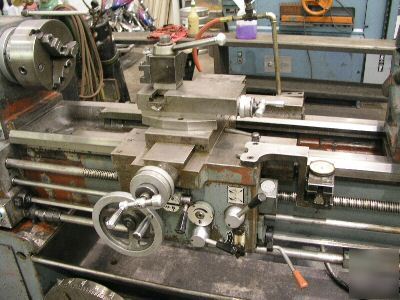

Trav-A-Dial System Mounted on Carriage
(4) Adjustable Feed Kick Out Stops for Carriage
0-1/2" Capacity Jacobs Key Type Drill Chuck with Key
Yuasa Quick Change Tool Post with (10) Assorted Holders
Wired for 3 Phase, 60 Cycle, 220 Volts Only
Overall Dimensions: 100" L-R x 36" F-B x 48" H x 3,750 Lbs.
