Pullmax turret punch pullmatic 156TP #49661

For Sale: Pullmax turret punch pullmatic 156TP #49661


Subject Pullmax turret punch pullmatic 156TP #49661
Ad is submitted by poster: * Manufacturer Pullmax CNC Turret Punch w/ Loading Tower
* Year Mfg. 1999 (Installed New In 2000)
* Control Pullmax PC Based CNC
* Throat Depth 102” X Travel
* Sheet Size 60” x 120” x .06” @ Max Acceleration (98” x 60” Maximum Size Of Plate Without Repositioning)
* Hit Rate Stroke Rate (continuous) 500/250 RPM; 1.4” Stroke Length
* Table Speed 3150 IPM Along X&Y Axis
* Max Material Thickness .25” Max., .03” Minimum; 121 Lbs. Max. Weight Of Plate At Max Acceleration, 485 Lbs. Max Weight Of Plate At Reduced Acceleration
* Type/Tooling Pullmax : Large Assortment Of Tooling Included, Turret Configuration & No. Stations AUTOMATIC TOOL CHANGER No. Of Tools In Magazine: 15, Largest Tool Diameter: 3”, Largest Stripper Diameter: 4.4”
* Magazine Rotation Speed: 40 RPM, Tool Change Time: 0.2-4 Seconds
* Distance From Plate Under Tool Magazine-Die Level:0.68”
* Auto Index Capability All Stations

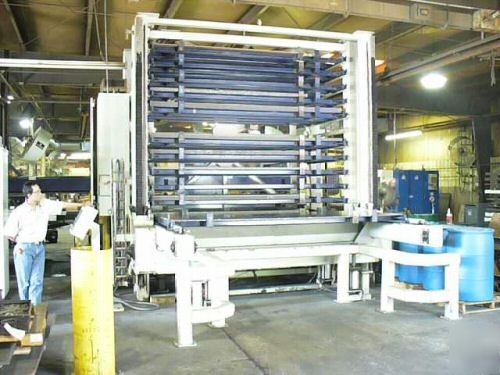

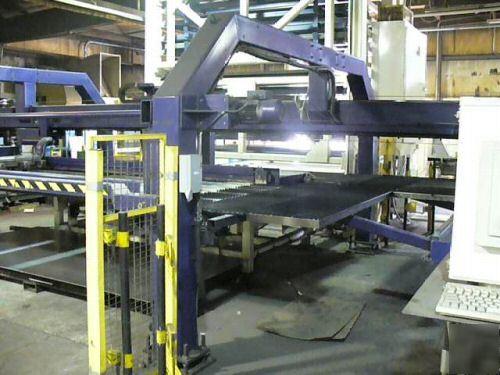

* Features/Accessories Twelve (12) Shelf Loading Tower, 6000 Lbs Capacity Each Shelf: 72,000 Lbs. Total Weight Capacity, 5’ x 10” Max Sheet Size, Suction Cup Style Load/Unload Device, Controlled By AB PLC Controller, Motor HP , Condition Very Good, Comments Sheet Repositioning Capability, 21” x 18” Trap Door: 18” x 16” Max Part Size
* FOB Point Plant Site: Midwest , Price $199,500 Complete DVD Video Available Upon Request
* Price Does NOT INCLUDED RIGGING OR FREIGHT CHARGES
Please call with questions (***)-726-7167 or (***)-441-5152
