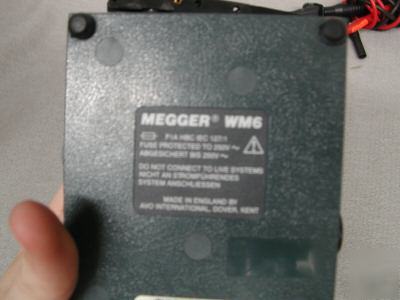

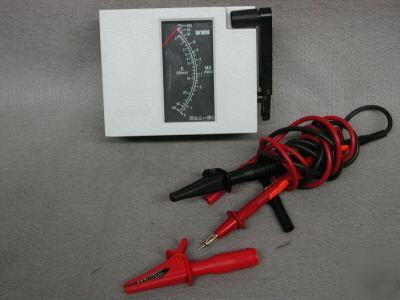

Megger WM6 insulation continuity 500 v dc tester

For Sale: Megger WM6 insulation continuity 500 v dc tester


Subject Megger WM6 insulation continuity 500 v dc tester
Ad is submitted by poster: "Pocket-sized, self-powered instrument - no battery maintenance problems
The Wee MEGGER WM6 tester is a self-contained instrument designed to give rapid and accurate resistance measurements. The hand-operated generator is coupled with the latest electronic technology, thus allowing the WM6 to test insulation at 500 V d.c. up to 200 MW.

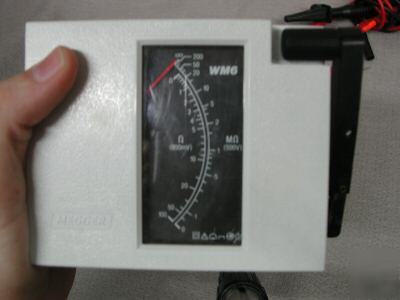

A low-voltage, hand-cranked, a.c. brushless generator, which is easy to turn by hand, is the power source. It is connected to a stabilized electronic invertor to provide the test voltage. All resistance readings are given directly on a moving-coil meter with a rugged taut-band suspension movement, a white-on-black scale and an orange "dayglow" pointer. This gives good legibility in most lighting conditions. An electronic circuit is used to give a four-decade resistance scale for insulation measurement.
The WM6 tester is suitable for the direct measurement of insulation resistance and continuity of domestic and industrial wiring, cables, trans-formers, motors, generators, electrical machinery and appliances. It is suitable for use during installation and commissioning work as well as servicing and maintenance applications.
The WM6 may be used to measure the insulation resistance of 415/240-V a.c. wiring installations to prove that they comply with wiring regulations.
• Pocket-sized, self-powered instrument — no battery maintenance problems
• Stabilized electronic invertor
• Resistance readings given directly on a moving-coil analogue meter
• Simple, two-position function selector switch
Please see pdf. for more detailed specifications
Continuity Range: 800 mV approx
Insulation Range: 500 V +10%, –5%
Terminal Current on Short Circuit
Insulation Range: 1,3 mA approx
Continuity Range: 55 mA approx
Voltage Stability, 160 to 240 RPM
1,5 mm (0,060 in.) from any marked position on the scale when measured against standard resistors
Voltage Source (d.c.) Brushless a.c. hand-cranked generator with rectifier and a.c.-to-d.c. converter
2,4 H x 5,1 W x 3,9 D in. approx"

repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our rules (on front page). Posted By: Rebecca Wyatt
Contact: Rebecca-Wyatt@repair--parts.com (Rebecca Wyatt) (this is a temporary forwarding address).
