0809 / ADC0809CCN / ADC0809 / a/d converter

For Sale: 0809 / ADC0809CCN / ADC0809 / a/d converter


Subject 0809 / ADC0809CCN / ADC0809 / a/d converter
Ad is submitted by poster: Now over 1,500 items in our Store!

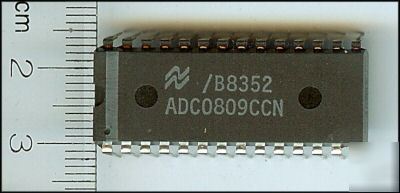

Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY.
ADC0808/ADC0809 8-Bit µP Compatible A/D Converters with 8-Channel Multiplexer
The ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications.
Easy interface to all microprocessors
* Operates ratiometrically or with 5 VDC or analog span adjusted voltage reference
* No zero or full-scale adjust required
* 8-channel multiplexer with address logic
* 0V to 5V input range with single 5V power supply
* Outputs meet TTL voltage level specifications
* Standard hermetic or molded 28-pin DIP package
* 28-pin molded chip carrier package
* ADC0808 equivalent to MM74C949
* ADC0809 equivalent to MM74C949-1
Total Unadjusted Error ±1?2 LSB and ±1 LSB
