Pic 16F884 /others/ dev board

For Sale: Pic 16F884 /others/ dev board


Subject Pic 16F884 /others/ dev board

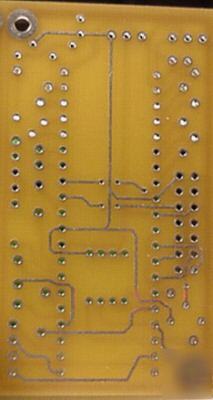

Ad is submitted by poster: USE THIS BOARD FOR YOUR NEXT PIC PROJECT
WORKS WITH 40 PIN PIC16F884, 16F887, 18F4420, 18F4520, 18F4455 and 18F4550
IT IS A PROFESSIONALY MADE DOUBLED SIDED BOARD
More info here> www.n9efj.net/pichw16f884.html
SIZE IS 2.5 inches x 1.4 inches. Has mounting holes.
This is a PCBoard that I ended up having to redo. Made a change and the board needed to be redone.
You can use this developement board for your project. Although it was designed for a PIC 16F884 there are
many other PIC's that have the exact pinout. The PIC is a 40 pin.
Download corresponding datasheets from Microchip for more info.
HERE IS HOW THE BOARD IS LAID OUT:
LCD CONNECTION HEADER WITH CONTRAST POT
1 SATURATED TRANSISTOR TO GROUND
29 PINS AVAILABLE FOR YOU AS I/O
EIGHT ORIGINAL I/O LINES MODIFIED OR DEDICATED
THESE ARE PORTA.4 and 6 [A.4 470 ohm resistor in series / A.6 Drives the transistor to provide a ground for external control of whatever.]
