Minster high speed feed ~ reconditioned

For Sale: Minster high speed feed ~ reconditioned


Subject Minster high speed feed ~ reconditioned

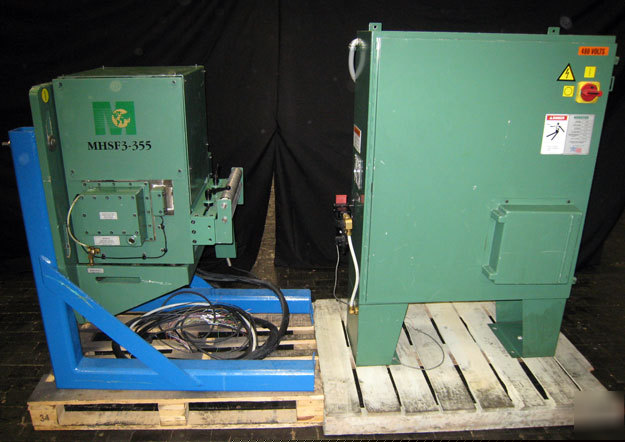

Ad is submitted by poster: The Minster MHSF is an AC servo driven feed designed specifically for higher speed applications. Minster's MHSF product line offers superior performance, reliability and efficiency for thin gauge, high speed, high vibration applications. Minster utilizes strict machining tolerances and high quality parts and materials along with design techniques honed specifically for the stamping industry. This dedication to quality offers accurate feeds that endure for a long, productive machine life.
All questions will be answered promptly.
• Vibration Isolated Feed Housing
• Direct Couple, Digital Servo Drive
• Both Upper and Lower Feed Rolls Driven
• Precision Anti-Backlash Gearing
• Allen Bradley Ultra 5000 Drive Control
• Allen Bradley Ultraware Software
• Programmable Pinch Roll Pressure
• Automatic Roll Lift Height Adjustment
• Electronically Cammed Feed Motion
• Press Mount Auxiliary Duracoder
• Chrome Blast No. 3 Roll Finish
• Hand Held Feed Set-up Pendant
• Minster PMC Feed Operator Interface
Control Specification: ANSI-B11.1 and NFPA-79.
System Voltage: 480V, 3 Phase, 60 Hz.
Material Direction: Left to Right.
Legend Plate Language: English.
Service Manual Language: English.
Special Feed Line Height: 12.84" over Bed
Feed Roll Face Diameter: 84 mm (3.31")
Feed Roll Face Width: 70 mm (2.75")
Number of Rolls Driven: Two (2)
Minimum Stock Width: 25 mm (1.00")
Maximum Stock Width: 356 mm (14.02")
Minimum Stock Thickness: 0.254 mm (0.010")
Maximum Stock Thickness: 3.0 mm (0.118")
Maximum Yield Strength: 550 MPa (80,000 psi)
Roll Opening for Threading: 5.10 mm (0.200")
Feed Repeatability Accuracy: +/- 0.051 mm (+/-0.002")
Maximum Feed Length Preset: 2540 mm (100")
Maximum Roll Lift Rate: 800 spm
Scale and Display Units: Metric
Approximate Feed Mass: 450 kg (1,000 lbs.)
Drive Reduction Ratio: Single 1/1
Pneumatic Supply Pressure: 80 PSI
Unless other arrangements are expressly made, the user is responsible for the complete integration and installation of this equipment. Minster engineering and service personnel can provide integration and installation service if required. Standard engineering and service rates will apply.
It is the responsibility of the end user/owner to select suitable protective safety measures to ensure conformance to current and future OSHA (Occupational Safety and Health Administration) safety regulations according to their particular machine production system configuration, operational methods and working environment.
(Click on Images for Larger View)

repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our rules (on front page). Posted By: Ida Jennings
Contact: I_Jennings@repair--parts.com (Ida Jennings) (this is a temporary forwarding address).
