20 crown / spear /chisel pogo pin dish network ict jtag

For Sale: 20 crown / spear /chisel pogo pin dish network ict jtag


Subject 20 crown / spear /chisel pogo pin dish network ict jtag
Ad is submitted by poster: This tip pog pins are good for incircuit test, Jtag or any type electronic product testing.

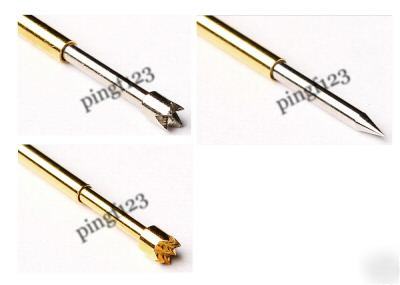

10 pieces P100-V-4R (crown tip) pogo pin & 1 piece 6-p 0.156" connector
P100Series Pogo Pin (Test Center 100mil)
Contact Barrel : Brass, Gold Plated, Spring : Music Wire Gold Plated
Plunger : Full-Hard Beryllium Copper or SK Material, Rhodium Plated over Nickel (Or Gold Plated Over Nickel)
Current Rating : 3 amps, continuous
Contact resistance: 50 milliohms
Rated Stroke : 4.32mm (0.170")
_6 pieces PL75-B-4R (Spear tip pogo pin) ,6 pieces RL75 CRW-34 (Wire wrapped receptacle) and 1 piece connector.
* note* PL75 and RL75 diamension is smaller than P100 series.
10 pieces P100-B-4R (spear tip) pogo pin & 1 piece 6-p 0.156" connector
10 pieces P100-H20-7G (serrated tip) pogo pin & 1 piece 6-p 0.156" connector
10 pieces P100-K-4R (chisel tip) pogo pin & 1 piece 6-p 0.156" connector
20 pieces P100-V-4R (crown tip) pogo pin
10 pieces P100-V-4R (crown tip) pogo pin and 10 pieces P100-B-4R (spear tip) pogo pin
20 pieces P100-B-4R (spear tip) pogo pin
20 pieces P100-H20-7G (serrated tip) pogo pin, (tip diameter 1.9mm)
20 pieces P100-K-4R (chisel tip) pogo pin
20 pieces R100-WW wire wrap type receptacle
Everett Charles Technologies HCP 25A -high current 10A, silver plated
12 pieces HCP 25A (Cup Tip) pogo pin
Everett Charles Technologies HCP 25H -high current 10A , silver plated
12 pieces Pogo 25 H(Serrated Tip) pogo pin. (tip diameter 1.5mm)
Everett Charles Technologies Pogo 25 UN-4
15 pieces Pogo 25 UN-4(Trident Tip) pogo pin
Everett Charles Technologies Pogo 25 J-4
15 pieces Pogo 25-J-4(Radius Tip) pogo pin
Everett Charles Technologies Pogo 25 A-4
15 pieces Pogo 25 A-4(Cup Tip) pogo pin
Everett Charles Technologies SPR 25 W crimp type receptacle
15 pieces SPR-25W crimp type receptacle
Good for Incircuit test or any electronic product testing
P100-XXX-XG and R100-WWare test set pair for wire wrap type electronic function test
Receptacle fit for P100 series or pogo pin with diameter 1.36mm (54mil)
Recommended Mounting Holes Size : 1.75mm Recommend Drill Size : #50
R100-WW Receptacle (Test Center 100mil)
