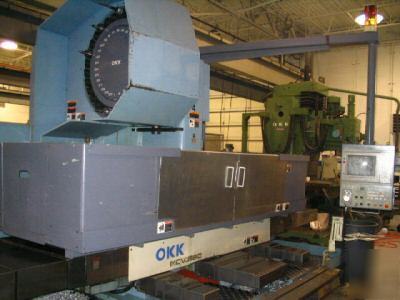

Okk mcv 860 cnc vertical machining center

For Sale: Okk mcv 860 cnc vertical machining center


Subject Okk mcv 860 cnc vertical machining center
Ad is submitted by poster: MANUFACTURER NO........MA67088A
TABLE DIMENSIONS..................90.55 X 33.46"
TABLE T-SLOT......................5 X 0.866"
TRAVELS..(X) AXIS.................80.31"
(Y) AXIS.................33.86"
(Z) AXIS.................28.35"
SPINDLE NOSE TO TABLE.............7.87 - 36.22"
MAX. TABLE LOAD...................6,614 LBS.
SPINDLE TAPER.....................#50 7/24
SPINDLE RANGE (AUTO SELECT).......2
SPINDLE SPEED.....................25 - 6,000 RPM
SPINDLE DRIVE.....................35/30 HP
SPINDLE TORQUE (MAX)..............905FT - LBS.
RAPID TRAVERSE (X/Y)..............630 IPM
FEED RATE RANGE...................394 IPM
AXIS MOTOR (X/Y/Z)................6.0 HP
AXIS THRUST (X/Y).................7,118 LBS (MAX)
AXIS THRUST (Z)...................7,118 LBS (MAX)
MAGAZINE CAPACITY..................30 TOOLS
TOOL SHANK.........................CAT "V"
TOOL DIAMETER (MAGAZINE FULL)......4.06" (MAX)
TOOL DIA. (ADJ. POTS EMPTY)........7.87" (MAX)
TOOL LENGTH (FROM GAUGE LINE)......13.78" (MAX)
TOOL WEIGHT (MAXIMUM)..............44.1 LBS
TOOL TO TOOL CHANGE TIME...........2.5 SECONDS
CHIP TO CHIP.......................9.0 SECONDS
MACHINE DIMENSIONS.................17.2x15.9x11.8 FT
MACHINE WIEIGHT....................37,500 LBS.
COOLANT TANK (CAPACITY 66.05 GAL)
**** ONLY RAN ALUMINUM *********
